Measure your Screw & Thread Needs

Click To Download Printable PDF Version
From 2 to 12 Threads Per Inch.
Print out this handy Thread Profile Guide to confirm your “TPI” Requirements.
ACME Screws & ACME Rods Profiles
Right & Left Threads Available

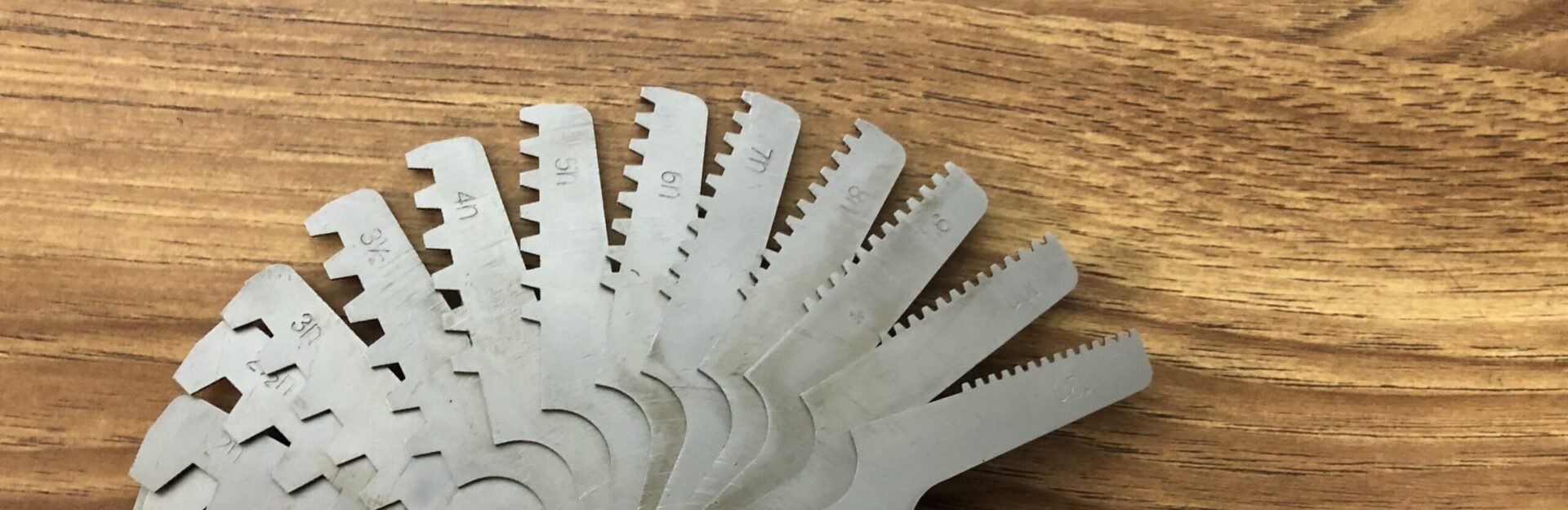

At Dependable Acme, customer service is still our main goal!  That is why we offer this handy Acme thread profile guide, to help determine the correct thread pitch needed.  Below, you will find a sample of what this thread screw guide looks like. Using this, you will be able to measure your screws, from 2 to 12 threads per inch.

Click the link below to download this Acme thread profile guide in a PDF file. After downloading it, you can print it off and make use of it right away! This is just a simple thread profile guide, but you will find it infinitely useful!

If you have any questions about our thread screw guides or the Acme products we manufacture, please give us a call at 800-893-3792. You can also e-mail us at, or fax 516-997-5464. We hope this guide is helpful and look forward to hearing from you!
